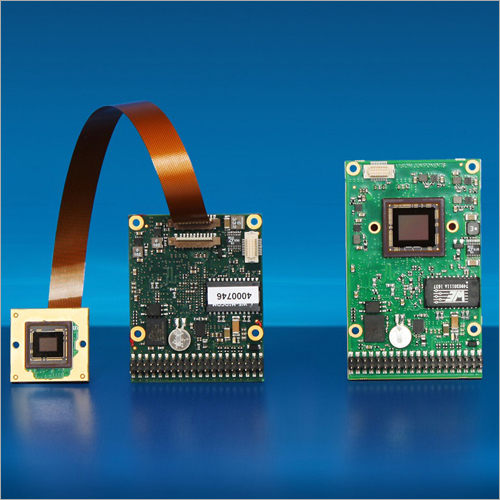

VCSBC NanoZ Embedded Vision Systems Boardcams
Product Details:
- View Angle Varies by lens; wide range of Field-of-View possible
- Product Type Board Camera (Boardcam)
- IR Distance IR support optional, dependent on lens and IR filter
- ISO Auto/Manual adjustable depending on software integration
- NFC No NFC support
- Features Real time processing, customizable via software, compact board design
- Aperture Lens dependent
- Click to View more
X
VCSBC NanoZ Embedded Vision Systems Boardcams Product Specifications
- Board-level compact camera, highly integrated, flexible interface options
- Digital zoom via software
- Progressive Scan, real-time video capture
- Varies by lens; wide range of Field-of-View possible
- Not Applicable (powered via external supply)
- Board Camera (Boardcam)
- No WiFi module
- IR support optional, dependent on lens and IR filter
- Auto/Manual adjustable depending on software integration
- Up to 1.2 Megapixels
- No NFC support
- No display
- PCB and electronic-grade plastics
- PCB: Green, Lens holder: Black
- Real time processing, customizable via software, compact board design
- Lens dependent
- 1/3 CMOS sensor
- 640 x 480 pixels (VGA) up to 60 fps, 1280 x 960 pixels (1.2MP) up to 15 fps
- CMOS
- Digital Video
- Embedded Vision System
- M12 lens mount, interchangeable lenses
Product Description
VCSBC NanoZ Embedded Vision Systems Boardcams are unmatched in terms of design and quality. These are industry-specific devices designed for monitoring and inspection purposes. Owing to their high build quality, unmatched ergonomics, and user-friendly design, these are preferred by our customers. Having equipped with precision electronic components and units, the offered VCSBC NanoZ Embedded Vision Systems Boardcams ensure optimum performance and longevity. These are durable and quality-assured products. Our customers can approach us to purchase the embedded vision system at a reasonable price.
Designed for Embedded Flexibility
The NanoZ Boardcams come in a compact 40mm x 40mm x 20mm board footprint, equipped with standard mounting holes for easy integration into systems or custom enclosures. Its board-level construction and robust electronic components provide longevity and versatility for industrial environments.
Smart Processing Onboard
Featuring the integrated NanoZ DSP, these vision boards deliver real-time image capture and processing straight from the camera. The customizable firmware allows end-users and developers to adjust parameters such as ISO, video format, and digital zoom, ensuring precise control of performance in a variety of applications.
Customizable Outputs and Interfaces
The NanoZ series supports a choice of digital outputs, including GigE, USB, or analog based on the board layout, broadening compatibility with diverse hardware. Lens interchangeability, software format selection, and trigger synchronization inputs or outputs further expand application scope.
FAQ's of VCSBC NanoZ Embedded Vision Systems Boardcams:
Q: How can I integrate the VCSBC NanoZ Boardcam into my existing system?
A: The NanoZ Boardcam supports standard mounting holes for board-level integration and can be easily connected to your system via GigE, USB, or analog video outputs depending on the camera model. Simply power the device with a 5V DC supply using the onboard connector, and configure its functions according to your application needs.Q: What types of video formats and resolutions are supported by this camera?
A: The NanoZ Boardcam accommodates multiple digital video formats, including MJPEG, YUV, and RAW, with format selection dependent on your software setup. It delivers VGA (640 x 480) video at up to 60 fps and higher resolution 1.2MP (1280 x 960) video at 15 fps, all with progressive scan for real-time capture.Q: When should I use optional features like onboard memory or trigger synchronization?
A: Onboard DDR/Flash memory modules are ideal when local storage or buffer is needed, such as for high-speed or autonomous processing. Trigger input/output options are recommended for applications requiring precise synchronization between camera capture and other system events, such as in machine vision or multi-camera setups.Q: Where can I use the NanoZ Embedded Vision System considering environmental limits?
A: The NanoZ is designed for use in diverse environments, operating reliably between -20C to +60C. Its compact board design suits both industrial machinery and custom OEM products where space and robust performance are required.Q: What is the process to change or upgrade the lens on this camera?
A: The M12 lens mount on the NanoZ Boardcam allows you to easily interchange lenses for different applications. Simply unscrew the current lens and replace it with a suitable M12 lens, adjusting for desired field-of-view, focus, or IR capabilities as required by your project.Q: How does the NanoZ Boardcam benefit my vision system project?
A: You gain a highly integrated, compact, and flexible camera solution that can be customized via software and hardware configurations. The real-time processing, interface options, and field-upgradable features ensure adaptability to skilled industrial, robotics, or custom embedded uses.Tell us about your requirement
