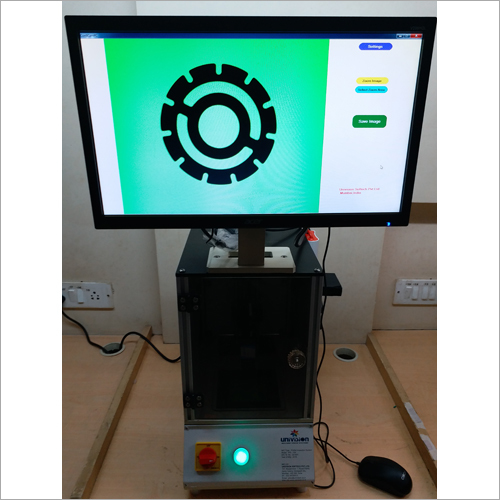

Electric Gauging And Profile Display System

Get a Price/Quote

Product Details:

Measurement Range Up to 2500 mm
Model No EGPDS-2050
Frequency 50 Hz
Power Source Electric, AC powered
Temperature Range 0C to 45C
Capacity Up to 2500 mm (customizable)
Accuracy 0.05 mm
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Electric Gauging And Profile Display System Product Specifications

Type Electric Gauging & Profile Display System
Core Components Sensor, display unit, control module, interface connectors
Dimension (L*W*H) 450 mm x 210 mm x 110 mm
Voltage 230 V AC
Automation Grade Semi-Automatic
Feature High precision, real-time profile display, easy to operate
Capacity Up to 2500 mm (customizable)
Accuracy 0.05 mm
Power Source Electric, AC powered
Usage Industrial measurement and profile monitoring
Temperature Range 0C to 45C
Display Type Digital LED panel
Equipment Materials Powder coated steel enclosure, industrial grade components
Weight Approx. 7-10 kg (varies by model)
Frequency 50 Hz
Model No EGPDS-2050
Measurement Range Up to 2500 mm

Product Description

We are engrossed in supplying the top-of-the-line Electric Gauging And Profile Display System that is widely acclaimed among our customers owing to its high build quality, sturdy construction, and longevity. It is a top-notch system equipped with the precision components and units that make it a sensitive and accurate gauging device. Electric Gauging And Profile Display System is easy to operate owing to its unmatched ergonomics and user-friendly features. Our customers can get the product from us at a reasonable price.

More details of Electric Gauging And Profile Display System:

This type of computer controlled display solution has been designed to simplify various technical procedures. Designed by skilled technocrats, this electric system has huge demand in the market for its ergonomic look and high functionality level. Bright picture quality, wide viewing angle, low power consumption and project time saving capacity are some of the important aspects of this display system. Offered machine has been checked on the basis of its service life, performance, utility, display mode and operating cost.

Reliable Precision for Industrial Measurement

Combining an accuracy of 0.05 mm with a resolution of 0.01 mm, the Electric Gauging and Profile Display System is engineered for strict industrial standards. It features industrial-grade components housed in a robust powder-coated steel enclosure, designed for frequent use in demanding environments.

Seamless Integration and Operation

Whether mounted on a panel or wall, this system offers straightforward installation and user calibration. Real-time data is displayed on a bright LED panel and exported via RS232 or USB, ensuring compatibility with various monitoring solutions. User-friendly menus simplify calibration and configuration for immediate readiness.

Versatile Monitoring and Customizable Alerts

The unit can measure profiles up to 2500 mm, making it suitable for extensive applications. Configurable relay alarm outputs allow timely notification of measurement deviations, contributing to process stability and reducing downtime in industrial operations.

FAQ's of Electric Gauging And Profile Display System:

Q: How is the Electric Gauging & Profile Display System installed?

A: The system can be easily installed on either a panel or wall, providing flexibility according to your facility layout. All required mounting accessories are included, and the robust steel enclosure ensures secure placement even in industrial environments.

Q: What types of input signals does the system support?

A: The EGPDS-2050 model accommodates both digital and analog input signals, ensuring compatibility with a range of sensors and measurement setups used in modern industrial applications.

Q: When should I perform user calibration on the device?

A: While the system is factory calibrated for immediate use, user calibration may be performed through the intuitive menu whenever process requirements change, or after extended operational periods to maintain optimal accuracy.

Q: Where can data from the system be exported for analysis?

A: Measurement and profile data can be exported via RS232 or USB interfaces, allowing integration with computers, quality monitoring platforms, or production management systems for further analysis or record keeping.

Q: What is the benefit of the configurable alarm relay output?

A: The configurable relay output provides immediate alerts for out-of-spec conditions, supporting proactive process control and minimizing the risk of defective outputs in real-time.

Q: How does the system cope with industrial environmental challenges?

A: The IP54-rated enclosure protects against dust and moisture, while industrial-grade components and powder-coated steel housing enhance durability under challenging conditions typical of manufacturing sites.

Q: What is the typical process for operating and monitoring with this system?

A: After installation, simply connect the necessary sensors and power supply. The user can set measurement parameters, calibrate if needed, and observe real-time profile data on the LED panel, with live data export and alarm notifications keeping operations under control.
