RFID Smart Card Based Smart Locker Control System

Get a Price/Quote

Product Details:

Temperature Range 0C to 50C
Voltage 230V AC
Capacity Can accommodate 1-2 items per locker (12/18/24/30 locker options)
Feature Contactless Access, Audit Trail, User Authentication, Multi-User
Measurement Range N/A (not applicable)
Core Components RFID Reader, Microcontroller, Electronic Locks, LCD Display, Power Supply
Power Source AC 230V, 50 Hz
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

RFID Smart Card Based Smart Locker Control System Price And Quantity

RFID Smart Card Based Smart Locker Control System Product Specifications

Voltage 230V AC
Capacity Can accommodate 1-2 items per locker (12/18/24/30 locker options)
Feature Contactless Access, Audit Trail, User Authentication, Multi-User
Measurement Range N/A (not applicable)
Core Components RFID Reader, Microcontroller, Electronic Locks, LCD Display, Power Supply
Display Type LCD Digital Display
Dimension (L*W*H) 1600mm x 400mm x 500mm (for standard units)
Type RFID Smart Card Locker System
Temperature Range 0C to 50C
Weight Approx. 32 kg (for 12-locker unit)
Frequency 13.56 MHz (HF RFID)
Usage Secure storage and access control
Automation Grade Automatic
Model No SL-RFID-12/18/24/30
Equipment Materials CRCA Steel, Powder-Coated Finish
Power Source AC 230V, 50 Hz
Accuracy 99.9% RFID Card Detection Accuracy

Product Description

RFID Smart Card Based Smart Locker Control System is an advanced and reliable industrial system. It is ideal for effective & efficient asset utilization. Owing to its compact sizes and high operational efficiency, it is preferred by our customers. Having equipped with the RFID-based sensor, and precision electronic components, this control system ensures longevity and high operational efficiency. It does not degrade in quality or become inferior in the long run. Our customers can approach us to purchase the RFID Smart Card Based Smart Locker Control System at a reasonable price.

Specification

Country of Origin	Made in India
Locker Allocation Options	Static dedicated or dynamic
Industry	Wooden Furniture Mfr / Steel furniture Mfr
No. of Lockers per unit	12 & Cascadable for expansion
No of Reading Stations	Min 1
Audio Announcements	Yes
Visual Indications	Yes
Voltage	24 V DC
Operator Interface	User friendly GUI via TFT LCD for easy communication
Password Protection	Yes
Reports	MIS Reports

Contactless Security with RFID Authentication

This smart locker system utilizes ISO14443A Mifare RFID cards for hassle-free, secure authentication. Users simply tap their card for access. With a 99.9% detection accuracy and the ability to store over 1,000 authorized cards, it's ideal for multi-user environments demanding high security and efficiency.

Robust and Flexible Storage Solution

Available in 12, 18, 24, or 30 locker configurations, the system can store 1-2 items per compartment. Cabinets can be finished in grey, blue, or white to meet aesthetic and functional preferences. Built with CRCA steel and a powder-coated finish, it ensures lasting durability and protection for stored valuables.

Intelligent Operational Features

The locker system supports multiple operational modes, including admin, user, master, and maintenance, for effective control and administration. It provides audio (buzzer) and visual signals for lock/unlock states or errors. An LCD digital display enhances usability, while transaction logs enable detailed activity auditing.

FAQ's of RFID Smart Card Based Smart Locker Control System:

Q: How does the RFID Smart Card Based Smart Locker Control System ensure secure access?

A: Security is achieved through ISO14443A Mifare 1K/4K RFID card authentication and electronic solenoid locks with auto re-lock functionality. Only registered cards can gain entry, and attempts to tamper trigger alarms, ensuring high protection for stored items.

Q: What is the process for users and admins to access lockers?

A: Users and admins tap their authorized RFID card on the reader. Visual and audio signals indicate successful access or signal errors. Admins have additional controls, such as adding or removing user cards and viewing audit logs via the LCD display.

Q: Where is this smart locker system typically installed?

A: The system supports both floor standing and wall-mounting installations, making it suitable for offices, educational institutions, industrial sites, gyms, and other secure storage environments in India.

Q: When should maintenance be performed on the lockers?

A: Routine maintenance is advisable to ensure optimal performance, including checking the electronic locks, cleaning RFID scanners, and verifying emergency override key functions. The maintenance mode supports secure access for authorized personnel.

Q: What are the benefits of audio-visual indicators and transaction logging?

A: Audio buzzers and visual signals provide immediate feedback on successful or failed operations, aiding ease of use. Transaction logging of the last 900 events enables audit trails for accountability and security review.

Q: How reliable is RFID card detection with this system?

A: Detection accuracy is rated at 99.9%, ensuring almost flawless recognition of authorized RFID cards, providing fast and dependable access for all registered users.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Locker Control System' category

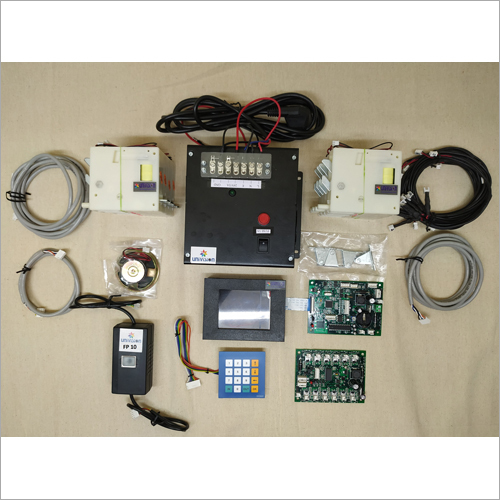

Finger Print Based Smart Locker Control System Accuracy : Fingerprint recognition accuracy 97% Equipment Materials : Powdercoated steel enclosure Power Source : AC mains (with battery backup) Frequency : 5060 Hz Model No : FPLSLC2024 Usage : Secured personal or institutional storage Automation Grade : Automatic Temperature Range : 0C to 50C Type : Smart Electronic Locker Weight : Approx. 20 kg Feature : Fingerprint authentication, audit trail, antitamper alarm Voltage : 230V AC Capacity : Single locker; customizable on request Display Type : Digital LCD Touch Display Dimension (L*W*H) : 500 x 300 x 300 mm Core Components : Fingerprint Sensor, Microcontroller, Electronic Lock, Display
